Celulose É Um Polissacarideo

Working with Cellulose in Practical Applications

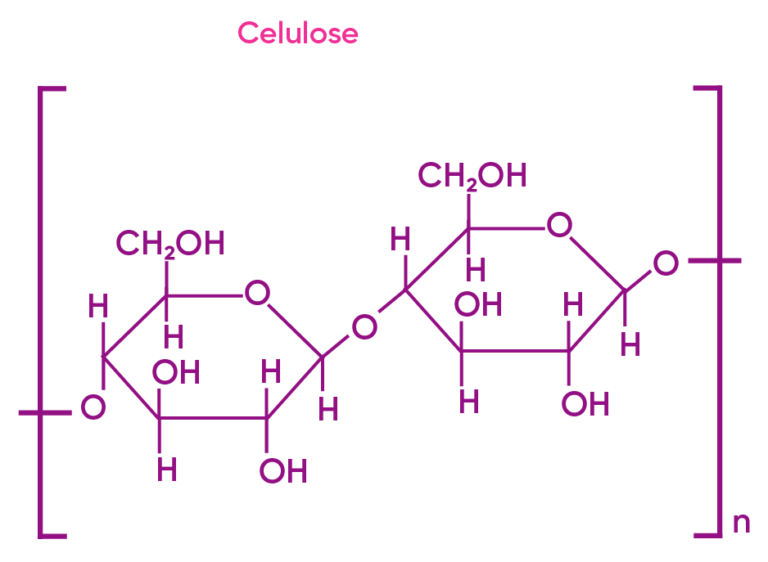

Most people encounter celulose é um polissacarideo without really thinking about it. It is in paper, cotton clothes, wood pulp, and even some food additives. But when you actually need to process or purify it, things get complicated fast. The chemistry is straightforward, but the execution has a lot of rough edges that beginners usually learn the hard way. Cellulose is a linear polymer made of D-glucose units connected by beta-1,4-glycosidic bonds. That beta linkage is what makes it structurally rigid compared to starch, which uses alpha linkages. Humans can't digest it because we lack the enzyme cellulase, though ruminants and certain insects handle it fine through symbiotic microorganisms. The polymer chains bundle together through hydrogen bonding to form microfibrils. These microfibrils are what give plant cell walls their tensile strength. Degree of polymerization varies wildly depending on the source. Cotton is around 7000 to 10000 glucose units, while wood pulp might be closer to 3000 to 14000 depending on the species and extraction method. Crystallinity also differs. Mature cotton cellulose runs about 86 to 90 percent crystalline, whereas spruce cellulose is more like 40 to 50 percent.

I spent years working with bacterial cellulose produced by Komagataeibacter xylinus. One problem that nearly drove me crazy was the residual sodium hydroxide from mercerization steps. You think you washed it enough, but traces remain and they degrade your downstream reactions. The workaround was switching to an acid-neutralization wash sequence instead of just alkaline processing. Ran the pH down to neutral in two stages rather than one aggressive wash, and it cleaned things up without damaging the fiber structure.

Extraction and Processing Methods

Kraft process is the standard for wood pulp, using sodium hydroxide and sodium sulfide at high temperatures. It removes lignin efficiently but leaves residual chemicals that require thorough bleaching. For laboratory-scale work, the cupriammonium hydroxide method gives you better control over purity, though the copper reagents are expensive and need proper disposal. Acid hydrolysis breaks cellulose down into glucose or cellodextrins, but controlling the reaction is tricky. Too much heat or acid concentration and you get unwanted degradation products. I've seen people burn through entire batches because they didn't monitor temperature gradients in the reaction vessel. A jacketed reactor with proper agitation makes a huge difference compared to a simple hot plate setup.

Dissolving Cellulose Properly

Cupriethylenediamine (CED) solvent works well for spinning fibers, but it is sensitive to moisture and degrades over time. N-methylmorpholine N-oxide (NMMO) is another option, used in the Lyocell process. It requires careful water management. Too much water and cellulose precipitates out. Too little and you get incomplete dissolution. The concentration range matters a lot. Most spinning dopes work between 8 and 12 percent cellulose by weight. Beyond that, viscosity becomes unmanageable and you risk clogging spinnerets. I once tried pushing to 15 percent for a custom fiber project and ended up with gelation in the extrusion line. Dropped back to 10 percent and everything ran smoothly.

Analyzing Cellulose Samples

Infrared spectroscopy identifies cellulose quickly. The broad O-H stretch around 3340 per centimeter, the C-H stretches near 2900, and the fingerprint region between 1000 and 1200 are all diagnostic. X-ray diffraction tells you about crystallinity. The characteristic peaks at approximately 15, 16, and 22 degrees two-theta correspond to the (101), (020), and (110) planes of cellulose I. Thermogravimetric analysis shows degradation starting around 300 to 350 degrees Celsius for pure cellulose. Hemicellulose degrades earlier, around 200 to 315 degrees, and lignin has a broader degradation range. This is why removing non-cellulosic components matters before doing any thermal processing. I learned this the hard way when trying to stabilize a cellulose composite material. Residual hemicellulose caused premature degradation and ruined the mechanical properties.

Common Pitfalls in Cellulose Work

One issue people constantly underestimate is moisture content. Cellulose is hygroscopic and absorbs water from the air rapidly. If you are weighing samples for dissolution, equilibrate them in a desiccator first. Otherwise your concentrations are off and your solvent ratios are wrong. Another problem is batch-to-batch variability. Even cellulose from the same supplier can vary between lots. Lignin content, ash content, and particle size distribution shift. If you are developing a reproducible process, characterize each batch before proceeding. A quick elemental analysis and viscometry measurement will tell you if your starting material is within expected ranges. Scaling up cellulose processing is harder than scaling down. What works in a 100-milliliter beaker often fails in a 10-liter vessel. Heat transfer, mixing efficiency, and solvent recovery all become different problems at larger scale. I recommend starting with pilot-scale trials before committing to full production runs. The time saved preventing a failed batch far outweighs the effort of intermediate testing.

For most practical applications, standard grade cellulose is sufficient unless you need high optical purity or specific crystalline forms. Regenerated cellulose like rayon or cellophane takes dissolved cellulose and reformulates it into fibers or films. The regeneration process itself introduces some structural changes, converting cellulose I to cellulose II, which has different packing and slightly different properties. Surface modification is another area where cellulose shows its complexity. Carboxymethyl cellulose, hydroxypropyl cellulose, and other derivatives are made by reacting cellulose with appropriate reagents under alkaline conditions. The substitution pattern affects solubility, viscosity, and film-forming properties. Higher substitution generally means better water solubility, but too much can weaken mechanical properties in finished products. If you need guidance on specific processing parameters or troubleshooting particular issues with cellulose materials, there are technical resources available from chemical suppliers and research institutions. The chemistry is well understood, but practical application requires attention to detail and careful handling of the variables involved.
