Escada 16 Degraus Articulada

Articulated ladders are practical until they aren't

I've been moving around job sites for over a decade now, and there's one piece of equipment that shows up constantly but is routinely misused: the escada 16 degraus articulada. It's a versatile tool that can work as an A-frame, an extension ladder, or something in between. Most people don't bother learning the difference until they've already made a bad call on a roof. The basic mechanics are simple enough. You unfold the hinges, lock the angles, and you're climbing. But the real work is understanding what each configuration actually allows you to do and, more importantly, where each one starts failing under stress.

When to use an escada 16 degraus articulada

If you need to reach a ceiling height of around 5 to 6 meters, a 16-rung articulated ladder in A-frame mode is usually the right call. The math checks out: you get roughly a quarter of your total length as working height above the platform when properly angled. Anything more than that and you're either stretching the ladder beyond its rated capacity or playing Russian roulette with stability. I once had a crew that kept trying to use their 16-step in straight extension mode against a two-story facade. They were getting about 8 meters of reach on paper, which sounds fine until you account for the fact that the bottom rungs weren't touching the wall properly. The hinges flexed under lateral load and the whole thing started rocking. We reconfigured it as a proper A-frame at a tighter angle and suddenly it was stable again. Took about 4 minutes to fix.

Configurations and what actually happens

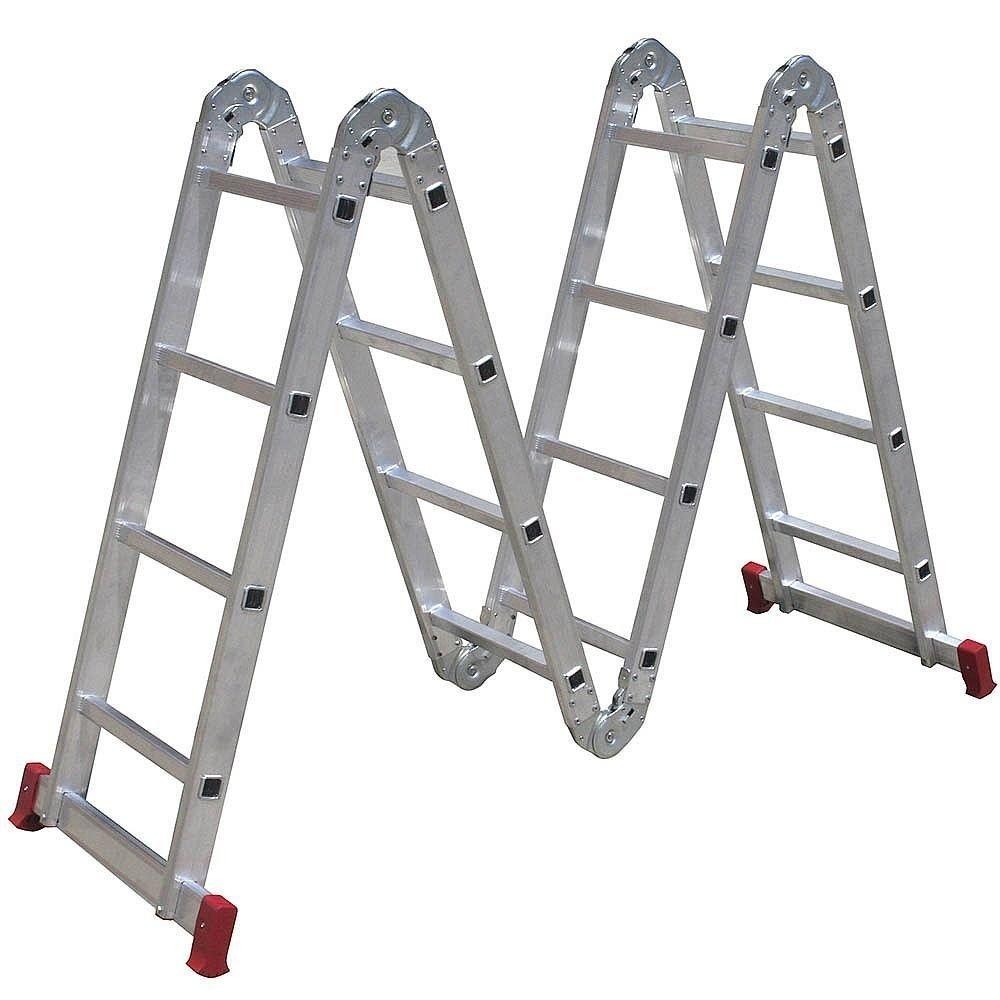

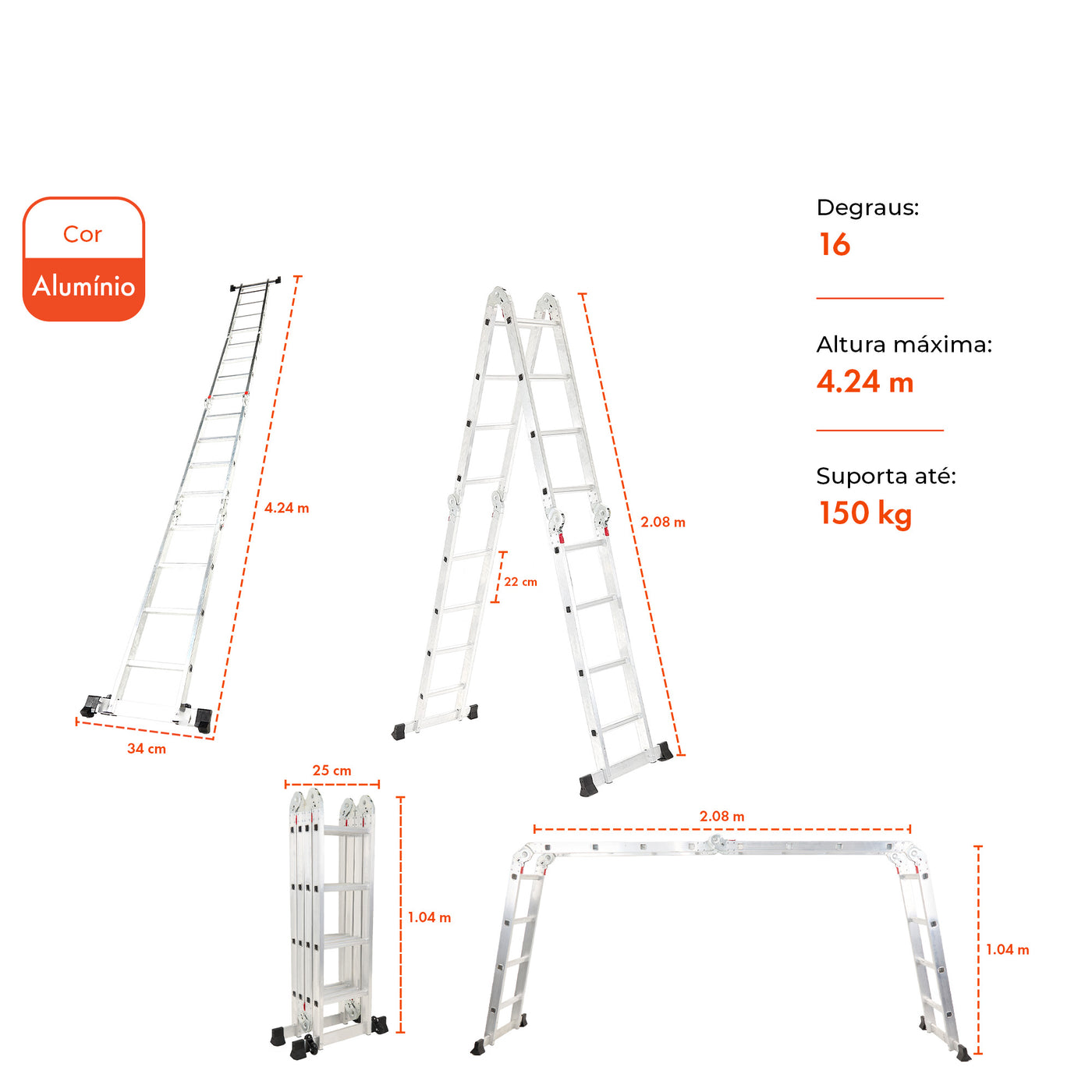

There are three main positions an articulated ladder can sit in, and each has real constraints that most manuals gloss over. A-frame position. This is the default. Both sides splay outward, locking into a self-supporting triangle. The useful rule here is the 4-to-1 ratio for lean configurations, but since A-frame mode doesn't lean, you're mostly checking that the ground is level and the feet are fully planted. Uneven terrain is the enemy here. I've seen a $400 ladder become a $0 projectile because someone set it on a slope and didn't use the adjustable feet. Straight extension position. You fold one side down and lean the whole thing against a surface. The critical detail most people miss is that you cannot fully extend an articulated ladder to its maximum rated length and maintain safe geometry. If the manufacturer rates it at 16 steps, that's the total. When you convert it to a straight ladder, you're losing effective length because the hinge mechanism eats into the usable rail. Plan for roughly 10 to 11 usable steps when in this mode, not 16.

Staircase position. This is where articulated ladders actually earn their name. You set each side at different angles to match uneven ground or stair geometry. It sounds flexible but it's also the configuration where most accidents happen. The center of gravity shifts unpredictably and the locking pins take uneven stress. I once watched a tech lean too far left while in staircase mode and the right-side legs lifted slightly off the ground. He didn't notice until the ladder started sliding. The workaround is to never work with more than one arm's reach to the side from the center rail. That's it. No exceptions.

Setup procedure

Before you even unfold the ladder, check the condition of the hinge pins. These are the weak points. Look for wear marks, bending, or anything that isn't sitting flush. A compromised hinge on a 16-step ladder means you're holding 120 kilograms of person plus tools at a height of nearly 5 meters. That's not a situation where "good enough" applies. Open the ladder on a flat surface first. Test every lock mechanism before putting weight on it. Listen for the click. If it doesn't click, it isn't locked. I've seen people skip this because they were in a hurry, and the lock had partially engaged without seating properly. The ladder folded mid-climb. Bad day. Once locked, spread the feet fully. If your model has adjustable leveling feet, use them. Not all articulated ladders come with them, and that's a limitation worth noting upfront. On a standard 16-rung model without adjustable feet, uneven floors become a dealbreaker quickly. You either find a flat area or you don't use the ladder there.

Load ratings and what they actually mean

Most 16-step articulated ladders carry a duty rating of Type IA or Type I. That's 120 kilograms or 150 kilograms respectively. The rating includes your body weight plus everything you're carrying. Tools in your pockets, a drill in your hand, materials on the rungs. People regularly overlook this and end up exceeding the rating without realizing it. A typical electrician might carry a tool belt at 8 kilograms, a drill at 2 kilograms, and some conduit or cable. That's an easy 12 kilograms over and above body weight. If you weigh 85 kilograms, you're at 105 kilograms. Still within Type IA, but you're eating into your safety margin with nothing left for dynamic loading when you move or shift your weight.

Common failure points

Locking mechanisms fail. Not often, but when they do, it's because they haven't been cleaned. Dust, drywall debris, and paint buildup get into the hinge pivots and prevent full engagement. I keep a small wire brush and a rag in my tool bag specifically for this. Takes 30 seconds before each use. Rungs crack near the attachment points. This happens most often with aluminum ladders that have been dropped or overloaded. Check the weld or rivet areas where the rung meets the side rail. Any discoloration or hairline fracture means the ladder comes out of service immediately. Don't try to fix it. These aren't structural components you can weld back together safely. The anti-slip feet wear through. Rubber degrades over time, especially if the ladder sits in direct sunlight between jobs. A smooth rubber foot on a dusty tile floor is basically ice skating. Replace the feet when they're worn flat. They're inexpensive compared to a hospital visit.

Storage and transport

Never leave an articulated ladder in a fully extended position when storing it. The hinges stay under constant tension and over weeks or months that stress fatigues the metal. Fold it to its compact length and store it in a dry place. Moisture is the silent killer of aluminum ladders, causing stress corrosion cracking that you won't see until the ladder fails under load. When transporting, secure it so it can't shift. A 16-rung articulated ladder is long and awkward. If it slides in the back of a van and hits the cab, the rail bends. A bent rail means the ladder no longer sits flat and the hinge alignment is thrown off. You can't unbend it. It's scrap.

When to walk away

If you need regular access above 6 meters, a 16-step ladder isn't the right tool. Use a scissor lift or a proper extension ladder rated for the height. The articulated design has inherent geometric limits that no amount of careful use will overcome. Similarly, if you're working on wet surfaces, near electrical conductors without appropriate ratings, or in conditions where you can't maintain three points of contact, the ladder itself isn't the problem. The situation is. Put it away and reassess. I had a situation last year where a client insisted we use their old 16-step on a sloped industrial floor with oil residue. I refused. We ended up using a mobile scaffold instead. Cost us an extra hour of setup but we finished the job safely and without incident. Sometimes the right answer is just not using the ladder at all.
