Instalando suporte para TV de 65 polegadas: o que realmente importa

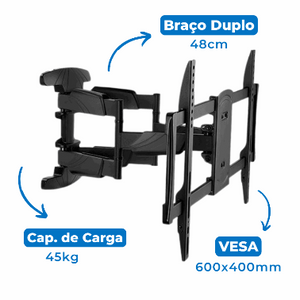

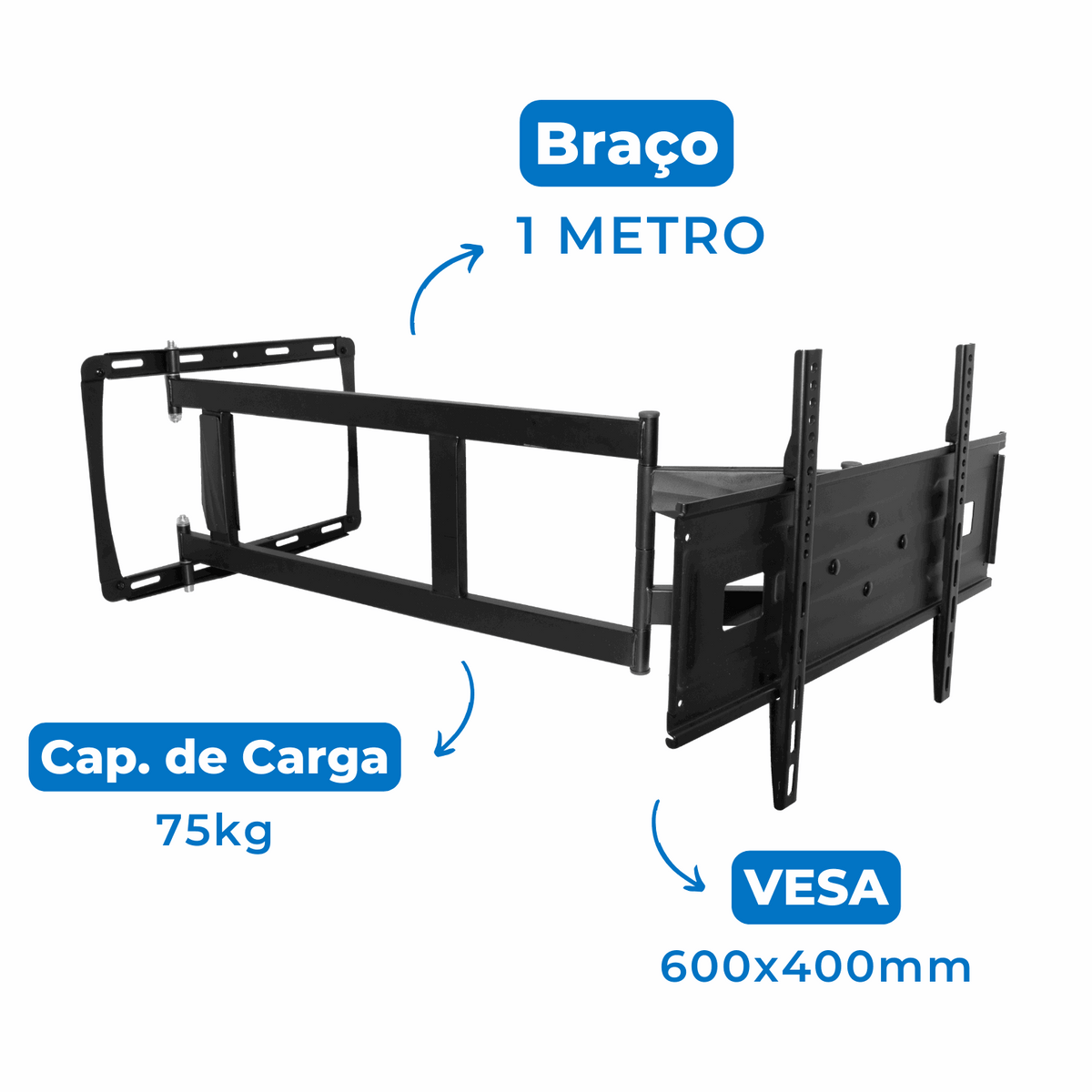

Most people buy the wrong bracket for their 65-inch TV and don't realize it until the thing is hanging on their wall and tilting forward. A 65-inch TV isn't just a big 55-inch — it's a completely different weight distribution problem. The VESA pattern is usually 400x400mm or 600x400mm, sometimes 600x400mm on larger sets. You need to check the back of your TV, not trust the box description. Most manufacturers list maximum TV sizes rather than the actual VESA compatibility, which is a useful distinction. There are three main types: fixed, tilting, and full articulating. For a 65-inch set, I recommend the tilting mount unless you have a specific reason to go full articulating. Full articulation arms create a long lever effect that puts significant stress on both the wall anchors and the TV's own mounting points. A 65-inch TV on a full extender arm at full extension can weigh well over 30kg of effective load on those two small screws in the TV back. Fixed mounts are fine if your viewing height is already correct, but most people end up looking down at their TV because they mounted it above a fireplace or console without accounting for the angle. The tilting bracket gives you the best middle ground. You can adjust the vertical angle to reduce glare without the lateral extension problem. A decent tilting mount for a 65-inch screen costs between 80 and 200 reais, and you should not buy anything below 80. The cheap ones use thin sheet metal that flexes under load. You'll notice it — the TV develops a slight bow, and over time the tilt mechanism loosens. Spend the money on a mount from a brand like Sanderson, Perletti, or Monte-Fit. The extra 50 reais is worth it for the hardware quality alone.

I had a situation last year where a customer had a 65-inch Samsung mounted on a budget tilting bracket on a drywall partition. The bracket was rated for 40kg, the TV weighed about 22kg unloaded, and the math seemed fine. What nobody checked was that the drywall studs were spaced 60cm apart, and the mount's top plate was spanning across the gap between two studs. After six months of normal tilting use, the drywall around the anchor points started cracking. The bracket hadn't failed — the wall had. I had to rip it down, install a proper wooden backing board between the studs, and remount everything. That took about 45 minutes of demolition and an hour of proper installation. If you're mounting on drywall or plasterboard, you need at minimum a Stud sensor and real toggle bolts or a de contraplacado fixada nos baquetões. Nothing else is reliable for this weight class.

Materiais e fixação

Concrete walls are straightforward. You need a hammer drill, 10mm or 12mm masonry bits, and wedge anchors or sleeve anchors. For a 65-inch TV, go with at least M10 anchors. Eight millimeter is cutting it close and will feel precarious even if the specs say it holds. Two anchors minimum, four is better if the bracket has four mounting points that line up with studs or solid sections. Wood studs are simpler but require attention to depth. Standard North American and Brazilian residential construction uses 5cm or 6cm thick studs. Your lag bolts need to penetrate at least 5cm into the wood, so 3-inch (75mm) bolts are the standard choice. Shorter bolts pull out under the dynamic load of tilting. I once saw a mount fail because someone used 2-inch screws — they held the static weight fine, but every time the TV was tilted back and forth, the shear force worked the screws loose by fractions of a millimeter. After about three months, the whole assembly was vibrating loose. Nobody noticed until the bottom corner of the TV started dragging against the media console. If you're mounting on a brick wall, that's actually the easiest scenario in Brazil. Solid brick holds anchors very well. Just make sure you're hitting the solid part of the brick, not the mortar joints. Mortar looks convenient but it's the weakest point in a brick wall. Drilling into mortar for a 65-inch TV mount is asking for trouble down the line.

Passo a passo de instalação

Turn off the TV and unplug everything. Remove the stand from the TV first — most 65-inch TVs have the stand bolts accessible from the bottom or back, and they come off with a Phillips head or sometimes a hex key. Keep those bolts somewhere safe; you might want the stand back later. Measure your ideal mounting height. For a 65-inch TV, the center of the screen should be roughly at eye level when you're sitting. That's usually around 100 to 110cm from the floor to the center of the screen. If you're mounting above a console, leave at least 15cm between the top of the console and the bottom of the TV for cable management and airflow. A 65-inch TV is about 82cm tall, so from floor to bottom of screen would be roughly 140-150cm in a typical living room setup. Hold the wall plate against the wall at your marked height. Use a level. Not "eyeball it" level — a real spirit level or a laser level if you have one. Mark the drill holes. Drill pilot holes slightly smaller than your anchors. Insert the anchors. Screw the wall plate in. This part is mechanical and boring; just be methodical about it.

Attach the VESA plates to the back of the TV. This is where people make mistakes. The four screws that come with the mount aren't always the right length for your specific TV. Some 65-inch TVs, particularly thinner models from LG and Samsung, have shallow threading on the VESA holes. If the screw is too long, it will bottom out before it's tight, or worse, it will puncture the panel from behind. I've seen this happen more often than I'd like to admit. The workaround is simple: place the screw against the VESA hole and measure how deep the threaded portion actually engages. If the screw extends more than 8-10mm beyond the threaded depth, you need shorter spacers or smaller screws. Use the spacers that come with the mount if the thread engagement is insufficient. Hang the TV on the wall plate. For a 65-inch set, this is genuinely a two-person job. The TV weighs between 18 and 25kg depending on the model, and the awkward shape makes it difficult to grip safely. Lift with your legs, not your back, and make sure both people are coordinating. Once it's on the wall plate, engage the locking mechanism if your mount has one. Many tilting mounts have a safety latch that clicks into place — you should hear and feel it lock. Cable management is the part everyone rushes. Run your HDMI, optical, and power cables before you tilt the TV flush against the wall. Leave some slack — maybe 15-20cm of extra cable — so you can tilt the TV away from the wall for maintenance without yanking everything. Use zip ties or Velcro straps to bundle cables neatly along the mount arms. Loose cables behind a 65-inch TV on a wall mount are a nightmare to deal with later.

Erros comuns e como evitar

The most common mistake is ignoring the weight rating. A 65-inch TV's weight varies enormously by brand and model. An LG OLED 65-inch weighs around 18kg. A Samsung QLED in the same size class can weigh 25kg or more. A budget LED from an unknown brand might actually be heavier than a premium OLED because of the thicker back housing. Check the actual spec sheet, not the "fits up to 75-inch" claim on the bracket packaging. That claim is based on VESA pattern compatibility, not weight capacity. Another issue is mounting on weak walls and hoping for the best. Drywall without proper reinforcement is not a viable mounting surface for a 65-inch TV. Period. If you're renting and can't install backing boards, consider a floor-standing TV stand instead. It's safer and causes less damage to the wall. There's no shame in it. A less obvious problem is heat buildup. TVs generate heat, and mounting one flush against a wall with no airflow behind it can shorten the lifespan of internal components. If you're using a fixed mount, make sure there's at least 2-3cm of clearance between the TV back and the wall. Tilting and articulating mounts naturally provide this clearance, which is another reason they're preferable for larger screens.

The final thing to check is whether your TV's built-in speakers will be blocked. Some 65-inch TVs have downward-firing or front-firing speakers near the bottom bezel. If you mount the TV too low or use a mount that sits too close to the wall, the sound gets muffled. Test this by holding the TV at mounting height and listening from your primary seating position before you commit to the final drill holes. It takes thirty seconds and saves you from buying a soundbar later because the audio was terrible.

Manutenção

Check the mount every six months. Tighten the wall plate anchors if they've loosened — this happens, especially on plasterboard installations. Inspect the VESA screws for any sign of pulling out. Tighten the tilt mechanism if it starts sagging. Most mounts have a tension adjustment screw on the back that counters the natural drift of the TV under its own weight. A quarter turn clockwise usually fixes a sagging 65-inch TV. Don't overtighten it though — you'll strip the threads or crack the TV's mounting bracket. Remove the TV from the wall once a year to clean behind it. Dust accumulation behind a large flat screen is more significant than people expect, and it gets trapped between the TV and the wall with no airflow. A can of compressed air through the sides takes two minutes and prevents thermal issues.
