Refractive index calculation: what it actually means and how to do it right

The refractive index of a material tells you how much light slows down when it enters that material compared to a vacuum. Light travels at about 299,792 kilometers per second in a vacuum, but it moves slower in glass, water, or plastic. The refractive index is just the ratio between those two speeds. It is a dimensionless number, and most common materials fall somewhere between 1 and 4. I have been working with optical materials for about twelve years, mostly with polymers and specialty glasses, and the thing I see people mess up most is assuming the refractive index is a fixed number for a given material. It is not. It changes with wavelength, temperature, and even the polarization direction of the light in birefringent materials. If you need precision, you have to specify the conditions under which you are measuring or calculating.

How to calculate refractive index from basic principles

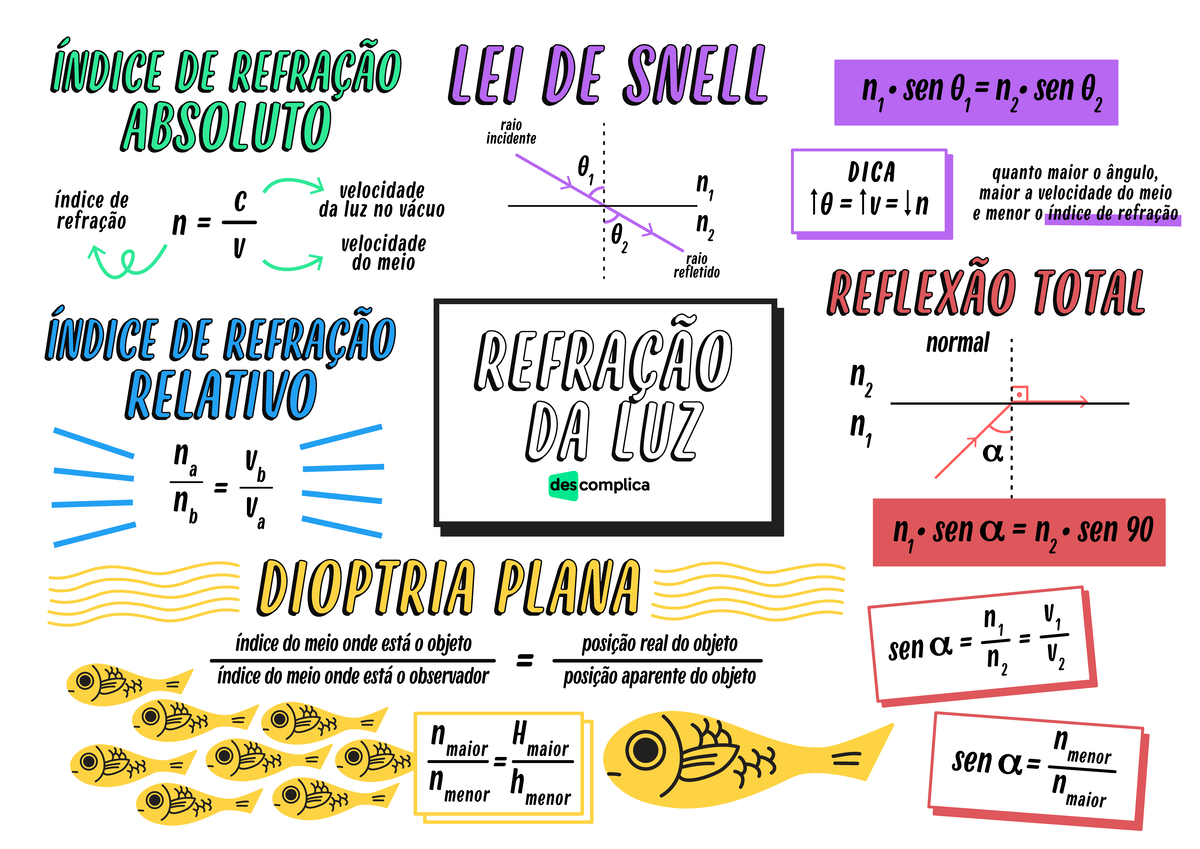

Start with the definition: n = c / v, where n is the refractive index, c is the speed of light in vacuum, and v is the speed of light in the material. This is the fundamental equation, and it works for any transparent medium. In practice, you rarely know v directly, so you usually measure it indirectly through Snell's law. When a light ray passes from one medium into another, it bends. The relationship is n sin() = n sin(), where is the angle of incidence and is the angle of refraction. If you know the refractive index of the first medium and you can measure both angles, you can solve for the unknown refractive index. This is the standard lab method and it is what most undergraduate physics courses teach. There is a more sophisticated approach that does not rely on angle measurements. You can use the Fresnel equations if you know the reflection and transmission coefficients at an interface, or you can use ellipsometry for thin films. For rough work, the minimum deviation method with a prism is often more accurate than simple angle measurements because it reduces errors from misalignment.

I ran into a problem last year when I was characterizing a new acrylic polymer for a lens application. The supplier's datasheet listed a refractive index of 1.491 at 589 nanometers, but my measurements with a refractometer were coming out around 1.478. I spent about three days troubleshooting before I realized the issue was dispersion. The acrylic's refractive index shifts significantly across the visible spectrum, and the supplier's value was measured at the sodium D-line while my instrument used a different calibration source. Once I corrected for the wavelength difference using the Cauchy equation, the numbers matched up perfectly.

Advanced methods and common mistakes

For materials where you cannot do a direct transmission measurement, you can sometimes calculate the refractive index from other physical properties. The Lorentz-Lorenz equation relates the refractive index to the molecular polarizability and number density of the material. This is useful when you are working with new compounds or mixtures where experimental data does not exist yet. The equation is (n² - 1) / (n² + 2) = (4/3) N , where N is the number density and is the polarizability. It is approximate but works reasonably well for gases and simple liquids. For solids, especially crystalline materials, it can deviate significantly. I learned this the hard way when I tried to predict the refractive index of a ceramic material using Lorentz-Lorenz and ended up off by about eight percent. X-ray crystallography gave me the density I needed, but the polarizability values I pulled from literature were for a different bonding environment, and that threw everything off. Another common pitfall is ignoring the temperature dependence. The refractive index of most materials decreases as temperature increases, primarily because the density drops. For precision optical work, you typically need temperature control within a degree or two. The thermo-optic coefficient dn/dT is usually in the range of 10 to 10 per degree Celsius for common optical materials, but some specialized glasses and liquids can have coefficients an order of magnitude larger.

If you are working with anisotropic materials like calcite or certain polymers, you have to account for birefringence. The refractive index becomes a function of both wavelength and polarization direction relative to the crystal axes. I have seen people use a single refractive index value for a birefringent material and then wonder why their polarization-based measurements do not match the theory. The solution is to measure or look up both the ordinary and extraordinary indices separately.

Practical workflow for getting reliable values

First, establish what wavelength you care about. Refractive index is meaningless without specifying the wavelength, and visible light spans roughly 380 to 750 nanometers, with significant variation across that range. Most datasheets use 589 nm, but if you are building a laser system at 633 nm or 1064 nm, you need the value at your actual operating wavelength. Second, control or measure the temperature. Even a ten-degree shift can matter for precision applications. Third, use the right method for your accuracy needs. A handheld refractometer might give you ±0.001 accuracy, which is fine for quality control but not for optical design work. For better results, use an Abbe refractometer or a spectrophotometer with an integrating sphere to measure reflection and transmission simultaneously. When calculating from Snell's law, make sure your angle measurements are precise. A one-degree error in the refraction angle can translate to several thousandths error in the refractive index, especially near critical angles. Using a goniometer with vernier scales or a digital angular encoder helps, and taking multiple measurements at different incident angles and averaging reduces random error.

For online lookup, most common materials have published refractive index data in handbooks like the CRC Handbook of Chemistry and Physics or specialized optics catalogs from companies like Schott, Ohara, and LG Chem. These catalogs often include dispersion curves and thermo-optic coefficients, which saves you from having to measure everything yourself. But remember that manufacturer data is typically measured under ideal conditions, and your actual sample might differ slightly due to processing history or impurities. Finally, if you are doing optical simulations or lens design, use software like Zemax, Code V, or OpenLens to import the refractive index data and model how it affects your system. These tools handle dispersion automatically and can propagate uncertainties through your design. I used to calculate everything by hand early in my career, and it worked fine for simple single-element lenses, but once you get into multi-element systems with achromats or apochromats, the algebra gets unwieldy fast and the risk of arithmetic errors becomes significant.
